CONFIGURATION

CONFIGURATION



There are several ways to retrieve configuration information from your Boca printer:



   1.  The label on the back or bottom of the printer will provide information regarding PRINTER MODEL, SOFTWARE (FIRMWARE) version, DPI, TICKET WIDTH, and INTERFACE.



   2.  The printer digital display will provide information regarding the LANGUAGE (FGL or PCL/HP),  SOFTWARE (FIRMWARE) version, and installed font version.



   3.  A printer test ticket will provide information regarding the LANGUAGE (FGL or PCL/HP), SOFTWARE (FIRMWARE) version, and DPI.



SAMPLES ARE SHOWN BELOW

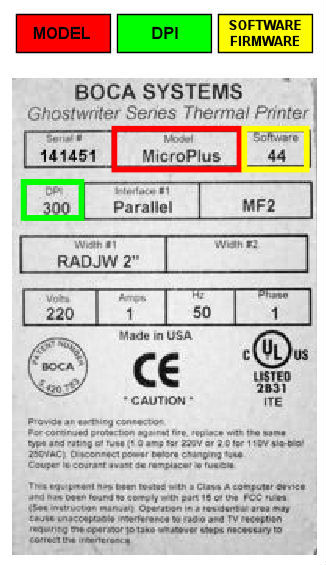

PRINTER LABEL

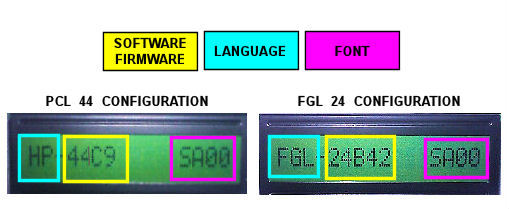

DIGITAL DISPLAY

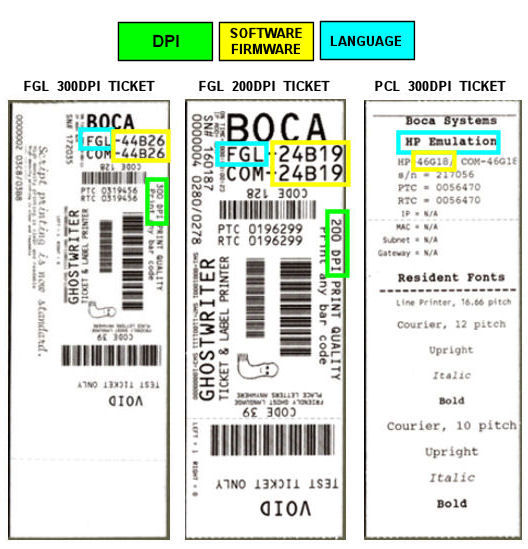

TEST TICKET
